Tesac Wirerope Co LTD. Tesac elevator wirerope with equiped to Otis, Fujida, Mitsubishi, Toshiba, Hitachi Elavator, etc.
General information
Wire Tensile Level
Division by based on J.I.S(Japanese industrial standard)
Grade E 1320N/mm2 (135kgf/mm2)
Grade G 1470N/mm2 (150kgf/mm2)
Grade A 1620N/mm2 (165kgf/mm2)
Grade B 1770N/mm2 (180kgf/mm2)
Extra Class based on Tesac spec.
Grade T1910N/mm2 (195kgf/mm2)
Tesac wire rope for elavator
1.Construction of hoist rope
8*19 Seale
8*25 Filler
8*19 Profile wires seale
8*25 Profile wires filler
2.Construction of Governor rope
6*19 Seale
6*25 Filler
8*19 Seale
8*25 Filler
6*24
3.Construction of compensation rope
6*37
8*25 Filler

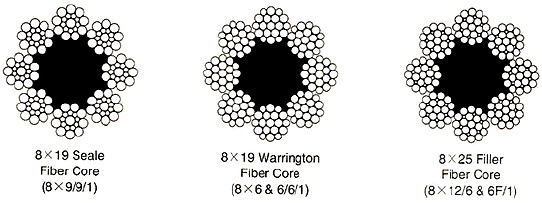

8*19 class wire rope fiber core
for elevator (hoist and governor)

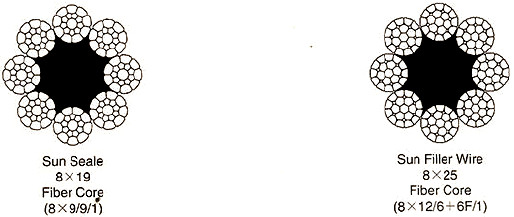

8*19 Class SUN Type wire rope fiber core
for elevator (hoist and governor)
SUNE ROPE FOR MINING , AERIAL TRAMWAY, STAY,etc.
6*37 Wire rope for crane,hoist and general engineering purposes

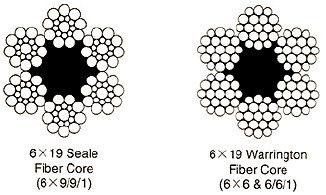

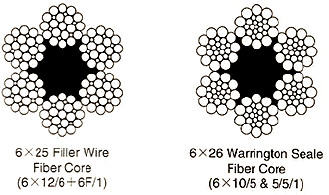

6*19 6*25 6*26 class wire rope fiber core
for crane,hoist, oil well and general engineering purposes.
6*19 Class wire rope IWRC
For crane, hoist , oil well and general engineering purposes.

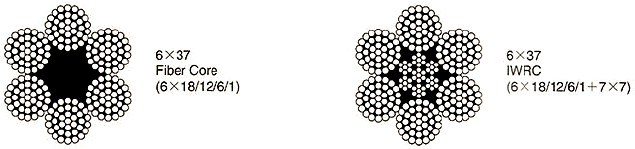

6*37 Class Wire Rope fiber core
For crane and general engineerign purposes
6*37 Class Wire Rope IWRC
For crane and general engineering purposes
6*19 class SUN type wire rope fiber core
for crane, hoist, oil well and general engineering purposes
6*19 class SUN type wire rope IWRC
For crane, hoist ,oill well and general engineering purposes.
6*37 class SUN type wire rope fiber core
for crane and general engineering purposes.
6*37 class SUN type wire rope IWRC
For crane and general engineering purposes
Non-rotating wire rope single rope 4*40
for crane and power transmission carrier
Non-rotating wire rope single rope 3*40
for crane and power transmission carrier
Non-rotating wire rope 18*7 19*7 34*7 35*7
For crane
Non-Rotating wire rope SUN NUFLEX
For crane
Locked coil rope
for aerial tramways,cable crane & suspension bridge
How to order
Typical cross sections of wire rope
