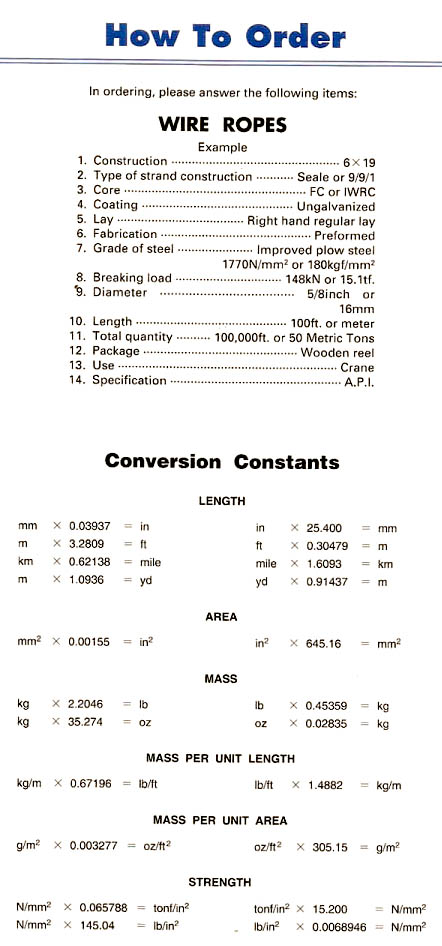

Tesac > How to order

In ordering , please answer the following items:

WIRE ROPE:

Example:

1. Contruction 6*19
2. Type of strand contruction Seale or 9/9/1
3. Core  FC or IWRC
4. Coating  Ungalvanized
5. Lay Right hand regular lay
6. Fabrication  performed
7. Grade of steel improved plow steel 1770N/mm2 or 180kgf/mm2
8. Breaking load  148KN or 15.1tf
9. Diameter  5/8inch or 16mm
10.Length  100ft or meter
11.Total quantity  100000ft or 50 metric tons
12.Package Wooden reel
13.Use Crane
14.Specification A.P.I.
