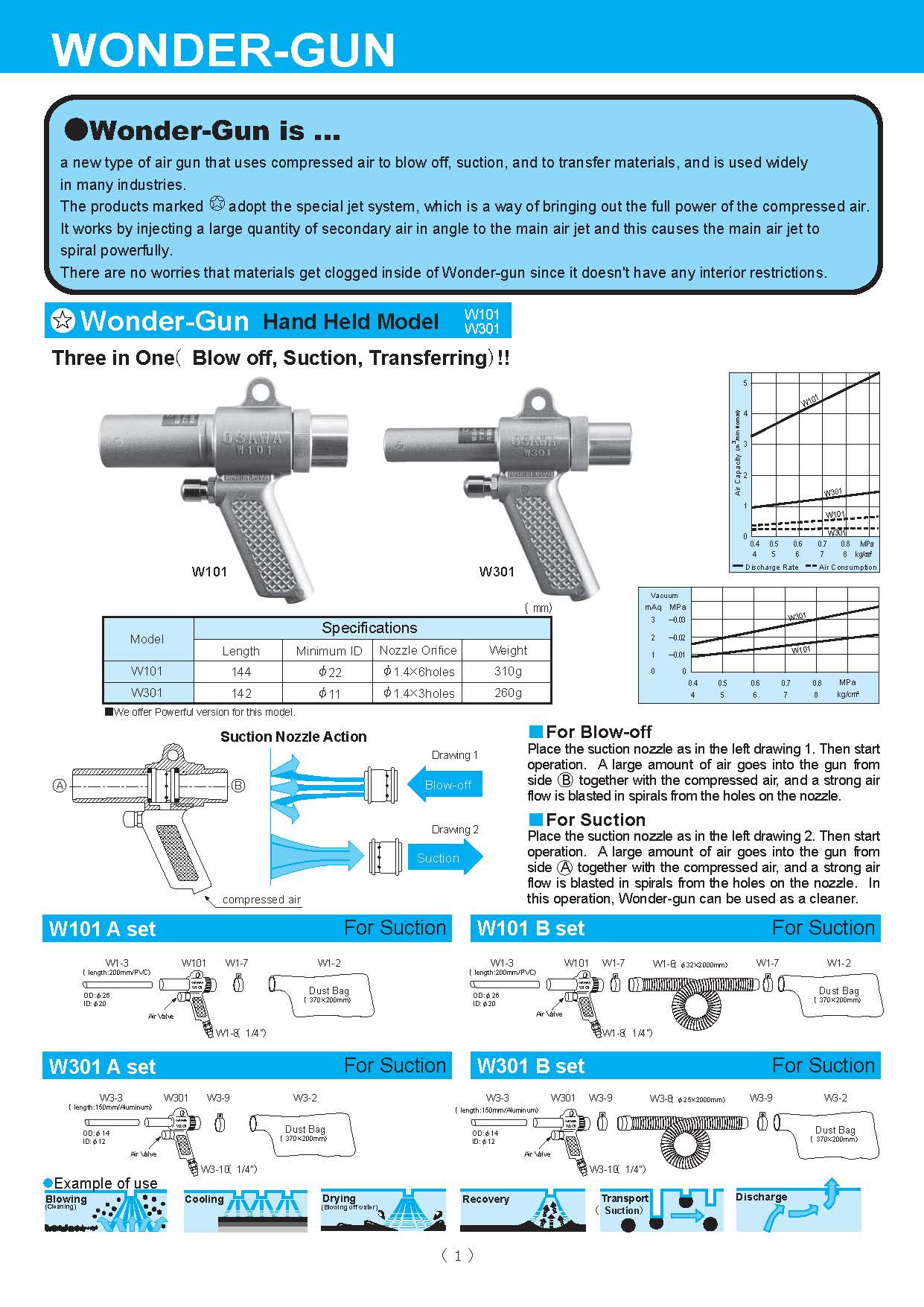

OSAWA Wonder-gun is a new type of air gun that uses compressed air to blow off, suction, and to transfer materials, and is used widely in many industries.

The products marked adopt the special jet system, which is a way of bringing out the full power of the compressed air, it works by injecting a large quantity of secondary air in angle to the main air jet and this causes the main air jet to spiral powerfully. there are no worries that materials get clogged inside of wonder-gun since it doesn't have any interior restrictions.

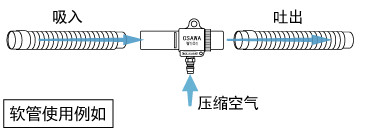

Wonder-gun hand held model W101 W301 Three in one(Blow off, suction, transferring)

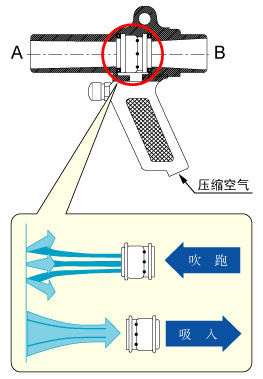

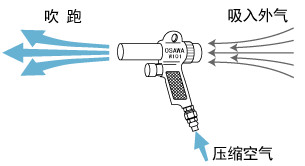

for blow-off place the suction nozzle as in the left drawing ,then start operation. A large amount of air goes into the gun from side B together with the compressed air, and a strong air flow is blasted in spirals from the holes on the nozzle.

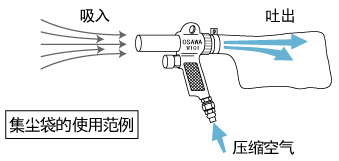

for suction place the suction nozzle as in the left drawing2. Then start operation. A large amount of air goes into the gun from side a together with the compressed air, and a strong air flow is blasted in spirals from the holes on the nozzle. In this operation, wonder-gun can be used as a cleaner.



W101:W101,W101-A,W101-B,W101-3-LC,W101-3-LC-A,W101-3-LC-B,W101-3-LH, W101-3-LH-A, W101-3-LH-B, W101-3-TC, W101-3-TC-A, W101-3-TC-B, W101-3-TH, W101-3-TH-A, W101-3-TH-B.

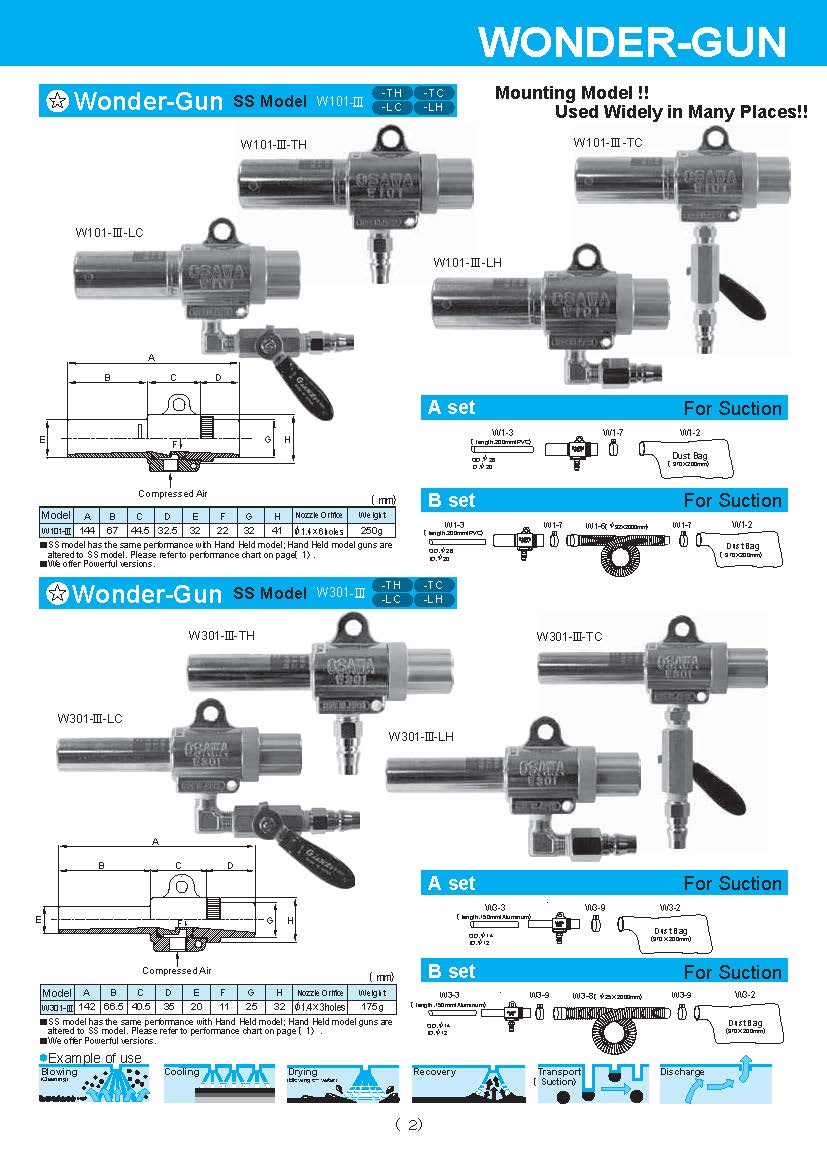

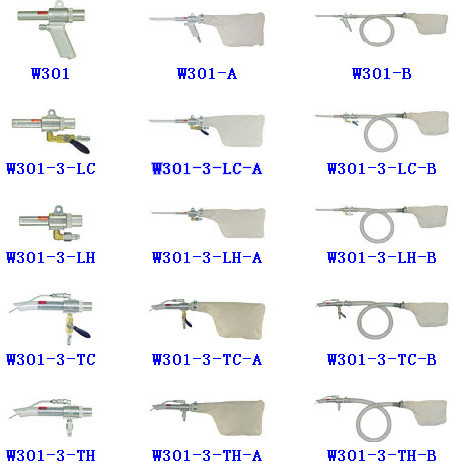

W301: W301-A W301-B W301-3-TH W301-3-TH-A W301-3-TH-B W301-3-TC W301-3-TC-A W301-3-TC-B W301-3-LH W301-3-LH-A W301-3-LH-B W301-3-LC W301-3-LC-A W301-3-LC-B

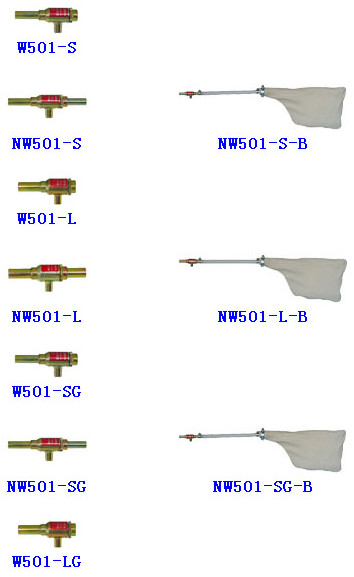

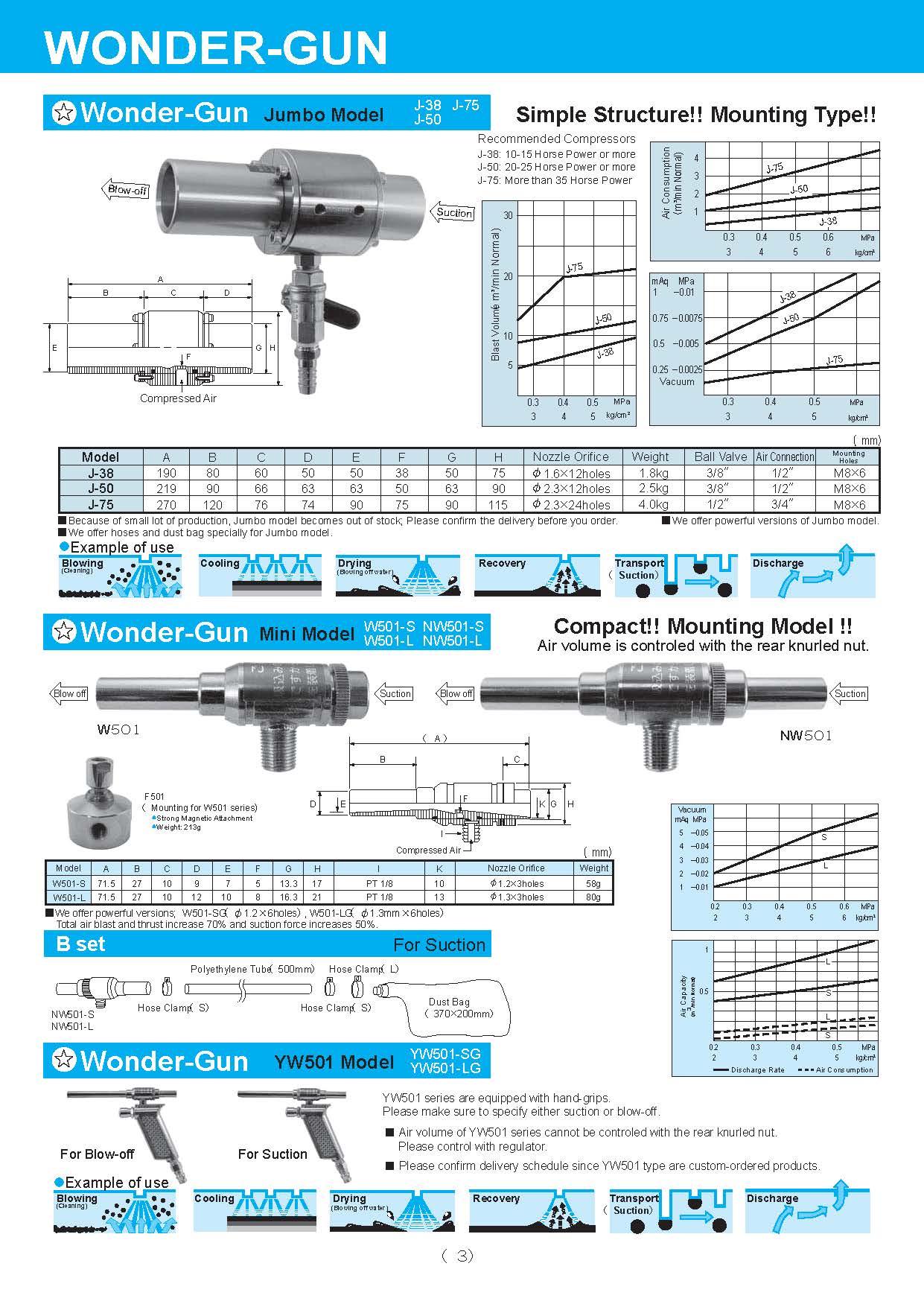

W501-S.W501-L NW501-L-B W501-SG, NW501-SG, NW501-SG-B, W501-LG.
