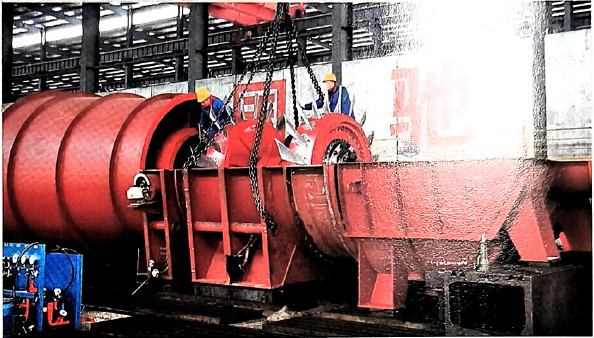

Series Moving & Stationary Blade Adjustable Axial Flow Fan
Moving & Stationary Blade Adjustable Axial Flow Fan
It is carefully developed with German technology by Hubei Sanfeng Turbine Equipment Co., Ltd. It offers high efficiency, wide adaptability to varying working conditions, and significant energy-saving benefits.
The blade angle of the moving-blade adjustable axial flow fan can be adjusted at any time using a hydraulic leaf-adjustment device, with a flow-adjustment range from 10 % to 100 %.
The stationary-blade adjustable axial flow fan impeller is designed as a meridian-accelerated three-dimensional warping blade, providing strong adaptability to changing conditions.
All blower parameters are monitored in real time, and operating indices are chained and protected by an advanced control system to ensure safe and smooth operation.
Application
It is widely used in thermal power plants, flue-gas desulfurization, mining, tunnels, and other heavy-duty fields.
Technical Parameters
| Model |
Air Volume (m3/s) |
Pressure Rise (Pa) |
Efficiency (%) |
Rotating Speed (r/min) |
| Single-stage Moving-Blade Adjustable Axial Flow Fan |
45 每 1000 |
1 800 每 7 000 |
88 |
490 每 1490 |
| Double-stage Moving-Blade Adjustable Axial Flow Fan |
100 每 1000 |
7 000 每 12 000 |
88 |
590 每 1490 |
| Stationary-Blade Adjustable Axial Flow Fan |
80 每 800 |
2 000 每 7 000 |
85 |
490 每 1490 |
|
