Muto blower MA MC MI MI-N ME ME-N MX F MS MT MTE

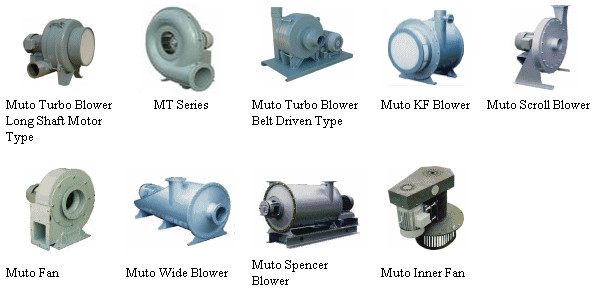

Muto Denki Corporation was founded in 1958 in Yokohoma Japan, main products: turbo blowers. type:MA, MC, ME, MI, GLA, GLC, GLE, GLB, GLL.

Model Motor Rated Output (kW) Frequency (Hz) Inlet/Outlet ? (mm) 50 Hz Max. Static Pressure (kPa) 50 Hz Max. Airflow (m3/min) 60 Hz Max. Static Pressure (kPa) 60 Hz Max. Airflow (m3/min) Stages Mass (kg) Noise Level (dB(A))<br>1-sided / 2-sided Heat-resistant Explosion-proof Outdoor
MA-1S/6* 0.10 60 / 50 40 1.35 1.5 1.96 1.8 2 10 65 / 60 N/A N/A N/A
MA-1S/5* 0.10 50 40 2.01 1.6 — — 3 11 63 / 58 N/A N/A N/A
MA-1/6 0.10 60 / 50 40 1.35 1.5 1.96 1.8 2 10 65 / 60 N/A N/A N/A
MA-1/5 0.10 50 40 2.01 1.6 — — 3 11 63 / 58 N/A N/A N/A
MA-2S/6* 0.10 60 / 50 40 2.06 1.6 2.89 1.9 5 11 66 / 61 N/A N/A N/A
MA-2S/5* 0.10 50 40 3.23 1.4 — — 5 13 64 / 59 N/A N/A N/A
MA-2/6 0.10 60 / 50 40 2.06 1.6 2.89 1.9 5 11 66 / 61 N/A N/A N/A
MA-2/5 0.10 50 40 3.23 1.4 — — 5 13 64 / 59 N/A N/A N/A
MA-3S/6* 0.15 60 / 50 40 3.23 1.4 4.70 1.7 5 14 67 / 62 N/A N/A N/A
MA-3S/5 0.15 50 40 4.65 1.4 — — 7 16 65 / 60 N/A N/A N/A
MA-3/6 0.15 60 / 50 40 4.65 1.4 4.70 1.7 5 14 67 / 62 N/A N/A N/A
MA-3/5 0.15 50 40 4.65 1.4 — — 7 16 65 / 60 N/A N/A N/A

* “*” denotes models with the “S” suffix (special-series impeller).

Model Motor Output (kW) Freq. (Hz) Inlet/Outlet ? (mm) 50 Hz Max P???? (kPa) 50 Hz Max Q (m3/min) 60 Hz Max P???? (kPa) 60 Hz Max Q (m3/min) Stages Mass (kg) Noise dB(A) One-side / Two-side Heat-resistant (kW) Explosion-proof (kW) Outdoor (kW)
MC-4S/6* 0.20 60 / 50 65 1.17 6.0 1.60 7.2 1 13 74 / 67 N/A N/A N/A
MC-4S/5* 0.20 50 65 2.06 6.0 — — 2 16 72 / 65 N/A N/A N/A
MC-4/6 0.20 60 / 50 65 1.17 6.0 1.60 7.2 1 13 74 / 67 0.2 0.4 0.4
MC-4/5 0.20 50 65 2.06 6.0 — — 2 16 72 / 65 0.2 0.4 0.4
MC-6/6 0.40 60 / 50 65 2.15 7.5 3.04 7.0 2 19 76 / 69 0.4 0.4 0.4
MC-6/5 0.40 50 65 3.13 7.0 — — 3 22 74 / 67 0.75 0.4 0.4
MC-4NS/6* 0.20 60 / 50 65 2.94 2.6 4.21 1.6 3 17 73 / 66 N/A N/A N/A
MC-4NS/5* 0.20 50 65 3.92 2.6 — — 4 20 72 / 65 N/A N/A N/A
MC-4N/6 0.20 60 / 50 65 2.94 2.6 4.21 1.6 3 17 73 / 66 0.2 0.4 0.4
MC-4N/5 0.20 50 65 3.92 2.6 — — 4 20 72 / 65 0.2 0.4 0.4

* “*” denotes special-series (“S”) impeller models.

Model Motor (kW) Freq. (Hz) Inlet/Outlet ? (mm) 50 Hz Max Static Pressure (kPa) 50 Hz Max Flow (m3/min) 60 Hz Max Static Pressure (kPa) 60 Hz Max Flow (m3/min) Stages Weight (kg) Noise dB(A) Single-/Double-sided Heat-resistant Motor (kW) Explosion-proof Motor (kW) Outdoor Motor (kW)
MI-6/6 0.40 60 / 50 80 1.96 8.5 2.89 7.0 2 21 78 / 71 0.4 0.4 0.4
MI-6/5 0.40 50 80 3.23 6.5 — — 2 22 77 / 70 0.4 0.4 0.4
MI-8/6 0.75 60 / 50 100 3.43 12.0 4.90 7.0 2 28 81 / 74 0.75 0.75 0.75
MI-8/5 0.75 50 100 5.00 8.0 — — 3 32 78 / 71 0.75 0.75 0.75
MI-10/6 1.50 60 / 50 100 5.06 13.0 7.35 10.5 3 35 82 / 75 1.5 1.5 1.5
MI-10/5 1.50 50 100 6.72 12.0 — — 4 39 79 / 72 2.2 1.5 1.5
MI-6X/6 0.40 60 / 50 100 1.36 12.8 1.96 11.0 1 19 78 / 71 0.4 0.4 0.4
MI-6X/5 0.40 50 100 1.86 12.0 — — 1 19 77 / 70 0.4 0.4 0.4
MI-8X/6 0.75 60 / 50 100 2.64 13.0 3.82 11.0 2 29 80 / 73 0.75 0.75 0.75
MI-8X/5 0.75 50 100 3.43 14.0 — — 2 29 79 / 72 0.75 0.75 0.75
MI-10X/6 1.50 60 / 50 100 3.62 18.0 5.19 16.0 2 34 84 / 77 2.2 1.5 1.5
MI-10X/5 1.50 50 100 5.39 18.0 — — 3 41 81 / 74 2.2 1.5 1.5
MI-8Y/6 0.75 60 / 50 125 1.56 18.0 2.25 20 1 25 81 / 74 0.75 0.75 0.75
MI-8Y/5 0.75 50 125 1.96 19.0 — — 1 25 80 / 73 0.75 0.75 0.75

– “—” indicates data not applicable or not measured.
– Noise levels are given for single- and double-sided piping, respectively.
– The last three columns show the maximum motor rating (kW) permitted for heat-resistant, explosion-proof, and outdoor configurations.

Model Motor Power (kW) Freq. (Hz) Std. Inlet/Outlet ? (mm) 50 Hz Max Static Pressure (kPa) 50 Hz Max Flow (m3/min) 60 Hz Max Static Pressure (kPa) 60 Hz Max Flow (m3/min) Stages Weight (kg) Noise Level dB(A) (1-pipe/2-pipe) Heat-resistant Motor (kW) Explosion-proof Motor (kW) Outdoor Motor (kW)
MI-10N/6 1.50 60 / 50 100 6.57 9.0 9.51 10.8 4 39 81 / 74 2.2 1.5 1.5
MI-10N/5 1.50 50 100 8.92 10.0 — — 5 43 78 / 71 2.2 1.5 1.5
MI-12/6 2.20 60 / 50 100 6.72 11.6 9.81 14.0 4 43 82 / 75 2.2 — 2.2
MI-12/5 2.20 50 100 9.81 11.0 — — 6 52 79 / 72 2.2 — 2.2
MI-12N/6 2.20 60 / 50 100 8.92 10.0 13.0 10.0 5 47 82 / 75 2.2 2.2* 2.2
MI-12N/5 2.20 50 100 12.20 9.5 — — 7 55 79 / 72 2.2 — 2.2

  • “—” indicates data not applicable or not measured.

  • Noise levels are given for single-pipe / double-pipe piping.

  • The last three columns show the maximum motor rating (kW) permitted under heat-resistant, explosion-proof, and outdoor specifications.

  • “2.2*” indicates special approval required for explosion-proof use.

All inlet/outlet diameters are in millimetres (? mm).

Model Motor Power<br/>(kW) Frequency<br/>(Hz) Std Inlet/Outlet ?<br/>(mm) 50 Hz Max Static Pressure<br/>(kPa) 50 Hz Max Airflow<br/>(m3/min) 60 Hz Max Static Pressure<br/>(kPa) 60 Hz Max Airflow<br/>(m3/min) Stages Weight<br/>(kg) Noise<br/>Single-pipe<br/>dB(A) Noise<br/>Dual-pipe<br/>dB(A) Heat-resistant Motor<br/>(kW) Explosion-proof Motor<br/>(kW) Outdoor-rated Motor<br/>(kW)
ME-4S/6 * 0.20 60 / 50 80 1.70 4.5 2.47 4.5 2 16 73 66 – – –
ME-4S/5 * 0.20 50 80 2.70 4.7 – – 2 17 73 66 – – –
ME-4/6 0.20 60 / 50 80 1.70 4.5 2.47 4.5 2 16 73 66 0.20 0.40 0.40
ME-4/5 0.20 50 80 2.70 4.7 – – 2 17 73 66 0.20 0.40 0.40
ME-6/6 0.40 60 / 50 80 3.09 5.0 4.41 5.0 2 20 77 70 0.40 0.40 0.40
ME-6/5 0.40 50 80 3.09 5.0 – – 2 23 74 67 0.40 0.40 0.40
ME-8/6 0.75 60 / 50 80 5.00 5.8 7.25 7.0 4 32 77 70 1.50 0.75 0.75
ME-8/5 0.75 50 80 7.45 6.0 – – 4 38 74 67 – 0.75 0.75
ME-6Y/6 0.40 60 / 50 80 1.56 9.1 2.25 11.0 1 17 81 74 0.40 0.40 0.40
ME-6Y/5 0.40 50 80 1.61 11.5 – – 1 17 78 71 0.40 0.40 0.40

* Single-phase unit available
“–” = not applicable / not measured
“–” in special-motor columns = configuration not offered



Model Motor Power (kW) Freq. (Hz) Std. Inlet/Outlet Port ? (mm) 50 Hz Max Static Pressure (kPa) 50 Hz Max Flow (m3/min) 60 Hz Max Static Pressure (kPa) 60 Hz Max Flow (m3/min) Stages Weight (kg) Noise Level dB(A) (1-pipe / 2-pipe) Heat-resistant Motor (kW) Explosion-proof Motor (kW) Outdoor Motor (kW)
ME-6N/6 0.40 60 / 50 80 4.20 3.5 6.08 2.5 3 23 75 / 68 0.4 0.4 0.4
ME-6N/5 0.40 50 80 5.49 3.5 — — 4 26 73 / 66 0.4 0.4 0.4
ME-8N/6 0.75 60 / 50 80 6.72 3.5 9.81 4.2 5 35 77 / 70 1.5 0.75 0.75
ME-8N/5 0.75 50 80 9.81 3.5 — — 7 42 74 / 67 — 0.75 0.75

  • “—” indicates data not applicable or not measured.

  • Noise levels are given for single-pipe / double-pipe piping.

  • The last three columns show the maximum motor power (kW) permitted under heat-resistant, explosion-proof, and outdoor specifications.

Model Motor Power (kW) Frequency (Hz) Inlet/Outlet ? (mm) 50 Hz Max Static Pressure (kPa) 50 Hz Max Airflow (m3/min) 60 Hz Max Static Pressure (kPa) 60 Hz Max Airflow (m3/min) Stages Weight (kg) Noise Level dB(A) (single‐pipe / two‐pipe) Heat‐resistant Motor kW Explosion‐proof Motor kW Outdoor Motor kW
MAX-2S/6* 0.10 60/50 65 0.59 4.4 0.85 5.3 1 10 70 / 57 – – –
MAX-2S/5* 0.10 50 65 0.71 5.2 — — 1 11 70 / 57 – – –
MAX-2/6 0.10 60/50 65 0.59 4.4 0.85 5.3 1 10 70 / 57 0.2 – –
MAX-2/5 0.10 50 65 0.71 5.2 — — 1 11 70 / 57 0.2 – –
MAX-4S/6* 0.20 60/50 65 1.20 4.8 1.80 5.8 2 14 72 / 64 – – –
MAX-4S/5* 0.20 50 65 1.90 5.4 — — 3 15 70 / 61 – – –
MAX-4/6 0.20 60/50 65 1.20 4.8 1.80 5.8 2 14 72 / 64 0.2 0.4 0.4
MAX-4/5 0.20 50 65 1.90 5.4 — — 3 15 70 / 61 – 0.4 0.4
MCX-4S/6* 0.20 60/50 80 0.76 7.1 1.10 8.6 1 16 74 / 63 – – –
MCX-4S/5* 0.20 50 80 1.10 8.8 — — 1 16 72 / 61 – – –
MCX-4/6 0.20 60/50 80 0.76 7.1 1.10 8.6 1 16 74 / 61 0.2 0.4 0.4
MCX-4/5 0.20 50 80 1.10 8.8 — — 1 16 72 / 61 0.2 0.4 0.4
MCX-6/6 0.40 60/50 80 1.40 9.4 2.10 11.3 2 25 75 / 67 0.4 0.4 0.4
MCX-6/5 0.40 50 80 2.00 10.4 — — 2 25 73 / 64 0.4 0.4 0.4
MEX-6/6 0.40 60/50 100 0.97 13.7 1.40 16.5 1 21 77 / 66 0.4 0.4 0.4
MEX-6/5 0.40 50 100 1.30 17.5 — — 1 21 75 / 64 0.4 0.4 0.4
MEX-8/6 0.75 60/50 100 1.80 14.3 2.70 17.2 2 32 78 / 67 0.75 0.75 0.75
MEX-8/5 0.75 50 100 2.60 17.2 — — 2 33 80 / 68 0.75 0.75 0.75
MEX-10/6 1.50 60/50 100 2.70 18.3 3.90 22.0 2 35 83 / 74 1.5 1.5 1.5
MEX-10/5 1.50 50 100 4.00 18.6 — — 3 40 81 / 71 – 1.5 1.5
MEX-12/6 2.20 60/50 100 3.80 18.3 5.60 22.0 3 43 84 / 74 – – 2.2
MEX-12/5 2.20 50 100 5.10 19.2 — — 4 49 82 / 71 – – 2.2
MIX-8/6 0.75 60/50 125 1.30 20.0 1.90 24.0 1 30 79 / 68 0.75 0.75 0.75
MIX-8/5 0.75 50 125 1.70 22.0 — — 1 31 77 / 66 0.75 0.75 0.75
MIX-10/6 1.50 60/50 125 2.50 19.0 3.60 23.0 2 39 84 / 73 1.5 1.5 1.5
MIX-10/5 1.50 50 125 3.30 24.0 — — 2 39 83 / 72 1.5 1.5 1.5
MIX-10Y/6 1.50 60/50 125 1.40 20.0 2.10 25.0 1 34 79 / 69 1.5 1.5 1.5
MIX-10Y/5 1.50 50 125 1.70 26.0 — — 1 35 79 / 68 1.5 1.5 1.5
MIX-12/6 2.20 60/50 125 3.30 24.0 4.70 28.0 2 42 87 / 75 2.2 – 2.2
MIX-12/5 2.20 50 125 4.80 24.0 — — 3 49 84 / 72 2.2 – 2.2



Model Motor Power (kW) Max Frequency (Hz) Inlet/Outlet ? (mm) Max Static Pressure Blow (kPa) Max Static Pressure Suction (kPa) Max Airflow Blow (m3/min) Max Airflow Suction (m3/min) Stages Weight (kg) Noise dB(A) Blow Single-pipe Noise dB(A) Suction Single-pipe Noise dB(A) Blow Dual-pipe Noise dB(A) Suction Dual-pipe Heat-resistant Motor (kW) Explosion-proof Motor (kW) Outdoor Motor (kW)
FA-107 1.5 112 40 22.0 –18.2 3.3 3.3 7 37 82 79 75 75 – – 1.5
FC-104N 1.5 97 65 15.2 –13.2 5.3 5.3 4 41 84 78 71 71 1.5 – 1.5
FC-126N 2.2 98 65 23.0 –18.7 5.1 5.1 6 54 84 78 72 72 2.2 – 2.2
FC-148N 3.7 106 65 30.5 –27.0 5.1 5.7 8 76 85 80 72 75 – – 3.7
FE-103 1.5 80 80 9.3 –8.5 9.5 9.5 3 41 81 78 70 70 1.5 – 1.5
FE-125 2.2 82 80 15.5 –14.0 9.4 9.6 5 50 83 79 71 74 2.2 – 2.2
FE-145 3.7 93 80 21.0 –18.8 10.9 11.4 5 73 85 83 73 74 3.7 – 3.7
FEX-122 2.2 67 100 4.6 –4.8 21.0 21.0 2 39 87 87 77 77 2.2 – 2.2
FEX-142 3.7 85 100 7.4 –6.9 26.0 26.0 2 66 92 92 76 76 3.7 – 3.7
FI-123 2.2 68 100 9.0 –8.2 16.2 16.2 3 44 85 84 78 78 2.2 – 2.2
FI-143 3.7 79 100 12.3 –11.2 19.0 19.2 3 70 88 88 75 75 3.7 – 3.7
FI-164 5.5 79 100 16.9 –14.8 18.4 18.4 4 96 94 92 83 84 5.5 – 5.5
FI-165N 5.5 77 100 21.0 –18.0 14.6 15.0 5 100 94 92 83 84 5.5 – 5.5
FIX-162 5.5 77 125 8.3 –7.6 36.0 36.0 2 91 97 97 83 83 5.5 – 5.5

  • “–” indicates not applicable or not measured.

  • Models marked “*” are single-phase or special-voltage versions.

  • Noise levels are given for single-pipe vs. dual-pipe installation.

  • The last three columns show the maximum allowable motor ratings (kW) when heat-resistant, explosion-proof, or outdoor-rated motors are required.



MTE Series (MTE-1 through MTE-5)

Model Motor Power<br/>(kW) Frequency<br/>(Hz) Inlet/Outlet ?<br/>(mm) Max Static Pressure<br/>(kPa) Max Airflow<br/>(m3/min) Stages Weight<br/>(kg) Noise<br/>Single-pipe<br/>dB(A) Noise<br/>Dual-pipe<br/>dB(A) Heat-resistant Motor<br/>(kW) Explosion-proof Motor<br/>(kW) Outdoor-rated Motor<br/>(kW)
MTE-1/6 0.75 60 150 2.95 22 1 47 81 69 0.75 0.75 0.75
MTE-1/5 0.75 50 150 2.95 22 1 48 81 68 0.75 0.75 0.75
MTE-2/6 1.50 60 150 3.65 32 1 50 85 72 1.50 1.50 1.50
MTE-2/5 1.50 50 150 3.65 32 1 50 85 71 1.50 1.50 1.50
MTE-3/6 2.20 60 200 4.45 42 1 60 86 74 2.20 2.20 2.20
MTE-3/5 2.20 50 200 4.45 42 1 61 86 73 2.20 2.20 2.20
MTE-5/6 3.70 60 200 5.40 59 1 84 90 77 3.70 3.70 3.70
MTE-5/5 3.70 50 200 5.40 59 1 85 90 76 3.70 3.70 3.70

MT Series (MT-2 through MT-10)

Model Motor Power<br/>(kW) Frequency<br/>(Hz) Inlet/Outlet ?<br/>(mm) Max Static Pressure<br/>(kPa) Max Airflow<br/>(m3/min) Stages Weight<br/>(kg) Noise<br/>Single-pipe<br/>dB(A) Noise<br/>Dual-pipe<br/>dB(A) Heat-resistant Motor<br/>(kW) Explosion-proof Motor<br/>(kW) Outdoor-rated Motor<br/>(kW)
MT-2/6 1.50 60 150 3.13 32 1 47 83 71 1.50 1.50 1.50
MT-2/5 1.50 50 150 3.13 32 1 48 83 70 1.50 1.50 1.50
MT-3/6 2.20 60 150 3.62 38 1 54 85 72 2.20 2.20 2.20
MT-3/5 2.20 50 150 3.62 42 1 55 85 71 2.20 2.20 2.20
MT-5/6 3.70 60 200 4.51 55 1 75 89 77 3.70 3.70 3.70
MT-5/5 3.70 50 200 4.51 55 1 76 89 76 3.70 3.70 3.70
MT-7/6 5.50 60 200 5.29 64 1 89 92 79 5.50 5.50 5.50
MT-7/5 5.50 50 200 5.29 68 1 90 92 78 5.50 5.50 5.50
MT-10/6 7.50 60 200 5.68 74 1 97 94 81 7.50 7.50 7.50
MT-10/5 7.50 50 200 5.68 74 1 98 94 80 7.50 7.50 7.50

MSD/MSF/MSH Series (MSD-3 through MSH-14)

Model Motor Power<br/>(kW) Frequency<br/>(Hz) Inlet/Outlet ?<br/>(mm) Max Static Pressure<br/>50 Hz (kPa) Max Airflow<br/>50 Hz (m3/min) Max Static Pressure<br/>60 Hz (kPa) Max Airflow<br/>60 Hz (m3/min) Weight<br/>(kg) Noise @60/50 Hz<br/>Single-pipe dB(A) Noise @60/50 Hz<br/>Dual-pipe dB(A) Heat-resistant Motor<br/>(kW) Explosion-proof Motor<br/>(kW) Outdoor-rated Motor<br/>(kW)
MSD-3ST * 0.15 50 / 60 80 0.68 6.5 0.98 7.9 16 68 / 64 56 / 52 – – –
MSD-3T 0.15 50 / 60 80 0.68 6.5 0.98 7.9 16 68 / 64 62 / 58 0.2 – –
MSD-4ST * 0.20 50 / 60 80 0.83 7.3 1.2 8.8 16 72 / 68 62 / 58 – – 0.4
MSD-4T 0.20 50 / 60 80 0.83 7.3 1.2 8.8 16 72 / 68 62 / 58 0.4 – 0.4
MSF-6T 0.40 50 / 60 100 0.97 13.3 1.4 16.0 22 72 / 68 62 / 58 0.4 – 0.4
MSF-8T 0.75 50 / 60 100 1.30 16.6 2.0 20.0 29 77 / 73 70 / 66 0.75 0.75 0.75
MSH-8T 0.75 50 / 60 125 1.10 23.0 1.7 28.0 35 76 / 72 69 / 65 0.75 0.75 0.75
MSH-10T 1.50 50 / 60 125 1.70 30.0 2.6 36.0 38 81 / 77 74 / 70 1.5 1.5 1.5
MSD-6P 0.40 50 / 60 100 0.90 8.3 1.3 10.0 21 76 / 72 62 / 58 0.4 – 0.4
MSF-8P 0.75 50 / 60 100 1.20 17.4 1.8 21.0 30 79 / 75 71 / 65 0.75 0.75 0.75
MSH-10P 1.50 50 / 60 125 1.50 28.0 2.2 34.0 40 86 / 82 75 / 71 1.5 1.5 1.5
MSD-8R 0.75 50 / 60 80 1.00 11.6 1.5 14.0 27 80 / 76 62 / 58 0.4 – 0.4
MSF-12R 2.20 50 / 60 100 1.70 23.5 2.5 28.0 36 90 / 86 76 / 72 2.2 – 2.2
MSH-14R 3.70 50 / 60 125 1.80 38.0 2.7 43.0 53 94 / 90 77 / 72 3.7 – 3.7

* Single-phase version
–– “Heat-resistant”, “Explosion-proof” and “Outdoor” columns give the maximum motor power (kW) available in those special configurations.
